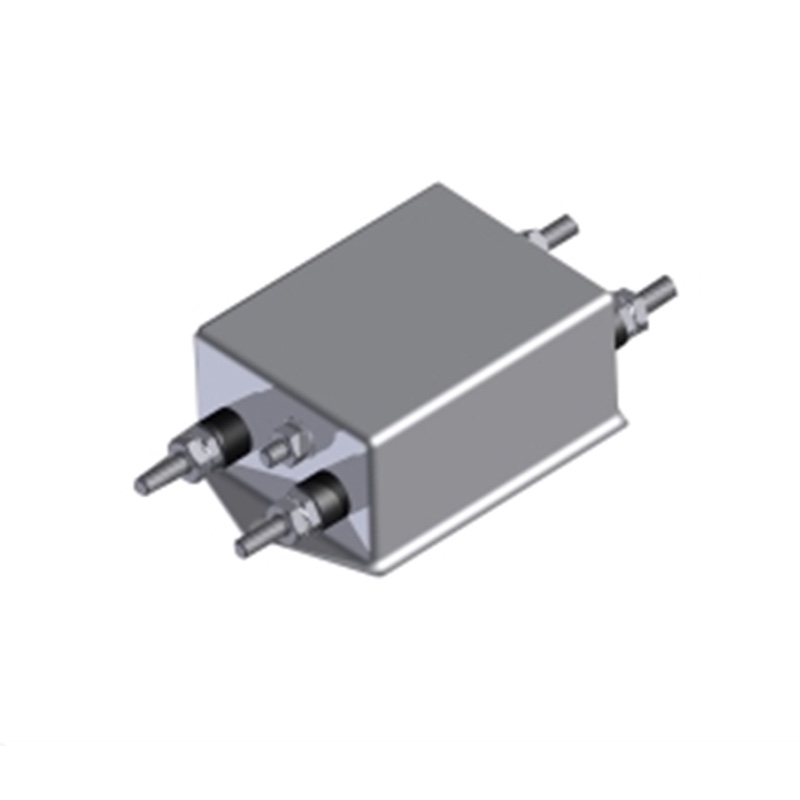

12A Chassis Mount AC EMC/EMI Mains Filter (T2060)
- Micro size
- International approvals
- Current Rating: 12A
- Voltage: 115 -230V AC
- Frequency: 50 – 60Hz
- Attenuation: Low
The T2060 range of filters are an innovative development and has been designed to ensure EMC compliance for various equipment applications in particular for IT equipment. Its physical compactness along with its outstanding performance in attenuation of unwanted interference makes this range unique. The In-line design allows ease of application and installation including retro fitting.
The T2060 filter series is a single stage device with effective attenuation characteristics at low frequencies. The housing is plated mild steel and the filter is encapsulated within this surround. This allows the unit to be securely mounted.
This filter is available in a range of current ratings 1A and 60A. This makes it a very compact multi-application unit providing the ultimate attenuation package.
